Three Port Circulators
Sylatech has expertise in the design and manufacture of three port Y junction waveguide circulators. These can either be provided as discrete items or system integrated as required.
Experts
System integration
Circulators are passive, non-reciprocal devices that allow the rf signal to pass in one direction. As these devices are non-reciprocal they can be matched at all ports.
Our three port circulators are widely used in radar and telecommunications applications. In combination with Sylatech’s extensive waveguide expertise, Sylatech can provide complete waveguide assemblies for radar/communication systems including high-power duplexers utilising waveguide circulator technology.

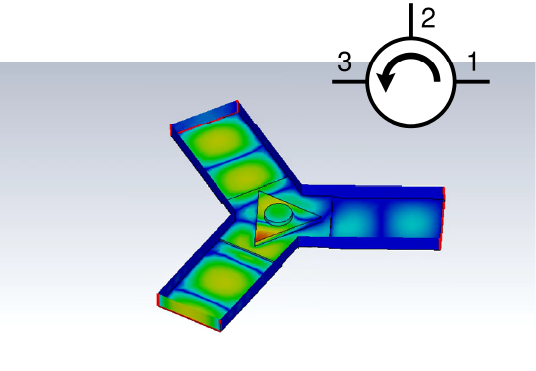

A 3D illustration showing the circulating behaviour from our EM simulation software.
Example Circulator Specification
We offer a range of standard devices for waveguide sizes ranging from WG10 to WG23 (WR284 to WR22).
| Metals Cast | Tolerance |
|---|---|
| Frequency | 9.0 to 10.0 GHz |
| Return Loss | 17.7 dB min |
| Insertion Loss | 0.4 dB max |
| Isolation | 18 dB min |
| Mean Power | 20 W max |
| Operating Temperature | -20 to 65 ⁰C |
Supply Chain Security
As a reliable European supplier, we address growing concerns over supply chain integrity and data security, which are key factors in defence procurement decisions. Additionally, we have expertise in managing all aspects of UK Government export control procedures.
